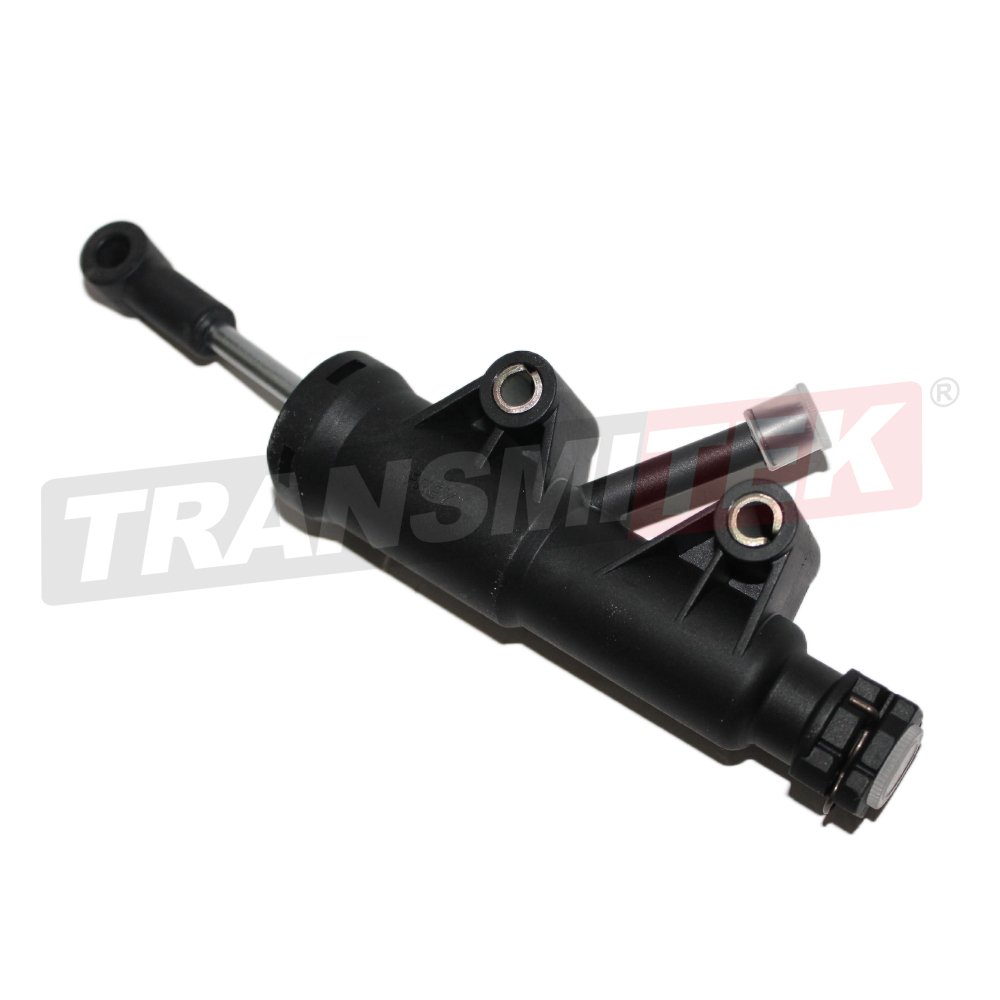

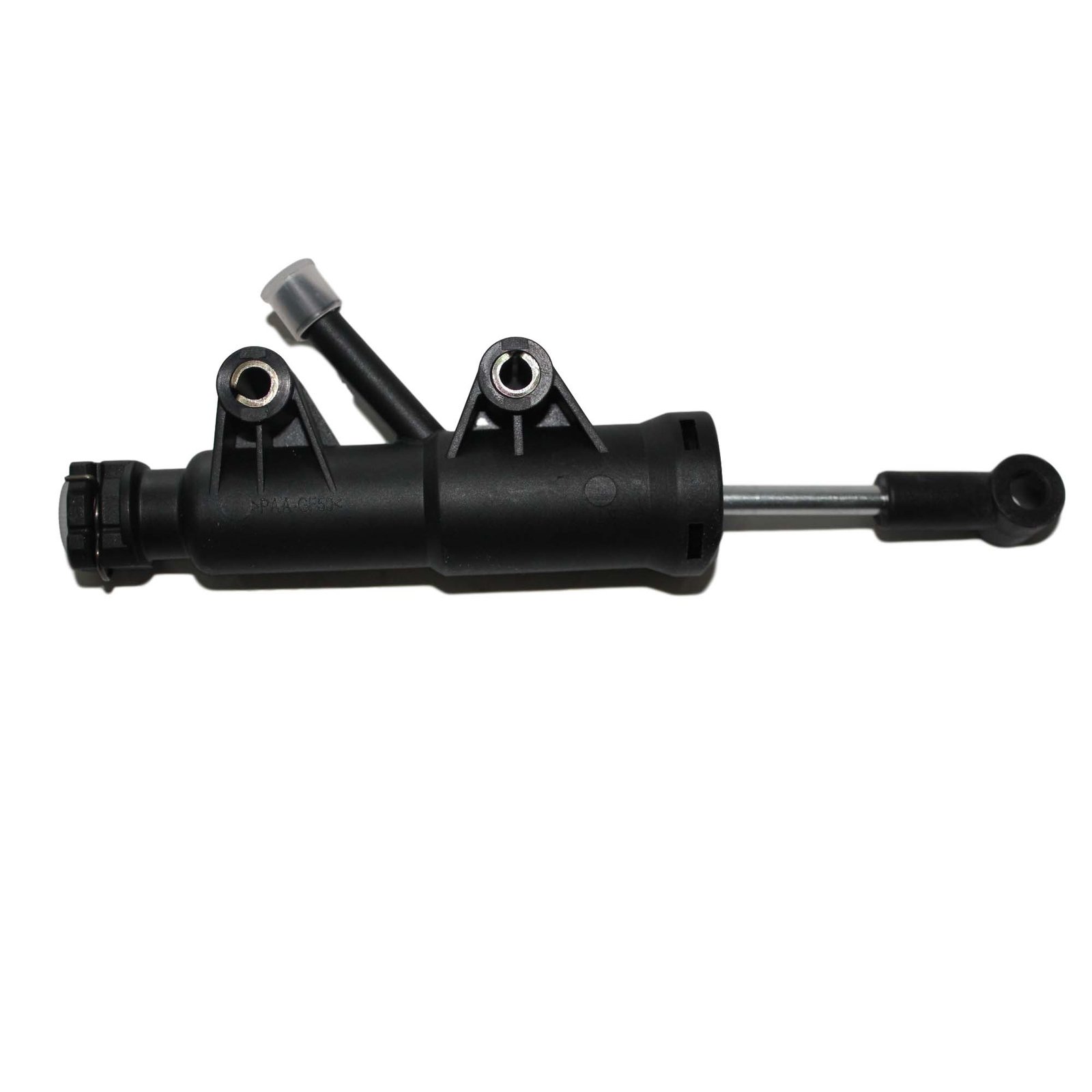

2E0 721 401C CL004 Clutch Pump
TRANSMITEK offer product coverage for over 90% of passenger cars and semi-truck models aftermarket, including European (especially German), American, Japanese, Korean, and Chinese vehicles.
Choose TRANSMITEK, choose peace of mind!
Quality Guarantee: 2 years or 60,000km
Vehicle: For VOLKSWAGEN; For BENZ
Diameter: φ19.05mm   Hole: Φ9mm
Replace No.: 2E0 721 401C ,906 290 0112, 906 290 0212, KG 190117.4.1
Description
Installation of clutch master cylinder
1. Introduction
The clutch master cylinder is a vital component in hydraulic clutch systems, responsible for converting pedal force into hydraulic pressure. Proper installation and maintenance are essential to ensure optimal clutch performance and extend product lifespan in aftermarket applications.
2. Installation Steps
Step 1: Preparation
a,Ensure the vehicle is safely parked and the engine is cool.
b,Disconnect the battery for safety.
c, Identify the location of the clutch master cylinder.
Step 2: Remove the Old Cylinder
a,Drain the hydraulic fluid from the system.
b, Disconnect the hydraulic line from the old master cylinder.
c, Unbolt the master cylinder from the firewall.
d, Detach the push rod from the clutch pedal.
Step 3: Install the New Clutch Master Cylinder
a,Position the new cylinder and bolt it to the firewall.
b, Connect the push rod to the clutch pedal (adjust pedal height if needed).
c, Reconnect the hydraulic line.
d, Ensure all connections are tight and secure.
Step 4: Fill and Bleed the System
a,Fill the reservoir with the recommended brake fluid (DOT 3, DOT 4).
b, Bleed the hydraulic system to remove any air bubbles.
c, Ensure consistent pedal pressure and correct engagement.
