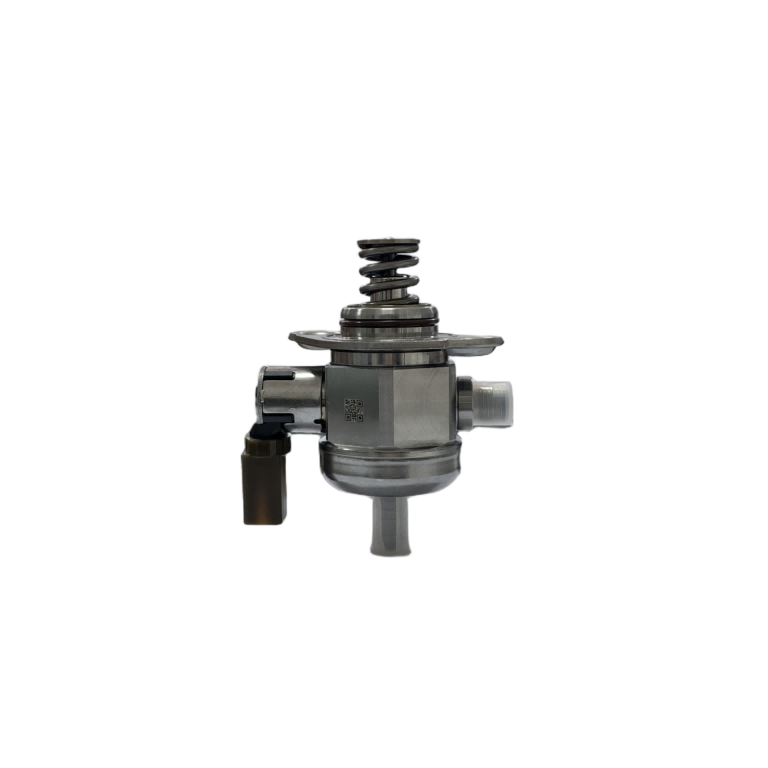

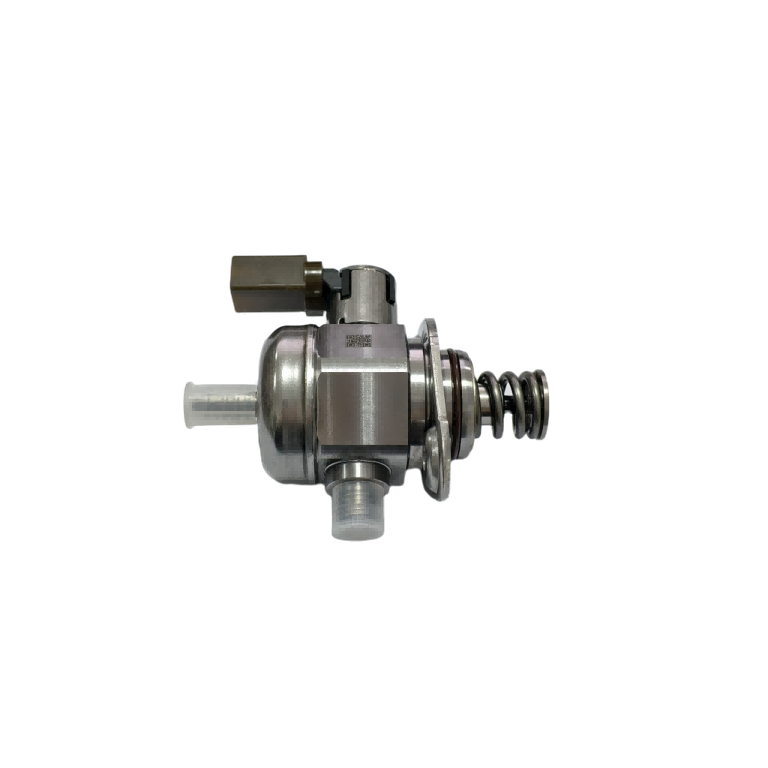

0261520552 HPP211 High Pressure Fuel Pump for Porsche 718 Boxster n Cayenne 911 3.0L
Product critical dimensions
| Flange head mounting diameter | φ34.9 +0.100 |
| Flange end face to plunger apex dimension | 35±0.10 |
| Oil inlet nozzle mounting outer diameter | φ9.1±0.10 |
| Oil outlet thread | M14*1.5-6H |
| Flange mounting hole center distance | 66±0.10 |
| Distance from flange mounting hole to pump body center | 33±0.05 |
| Flange mounting hole inner diameter | 2-φ6.5±0.10 |
| 35° | 35°±（1°） |
| Mounting Configuration | Bolt pattern and angle aligned with original manufacturer specifications |
Description
TRANSMITEK is a leader in the field of direct gasoline infection in China.
High-pressure fuel pump are used in modern direct-injection gasoline engines. Direct gasoline injection has the advantage of achieving higher torque with the same displacement. This results in higher performance. The engine responds better to changes in accelerator pedal position. When operatiing at partial load, the goal is to acheve measurable fuel saving.
The pump is placed directly in the cylinder head, because the drive mechanisam is mechanical and not electril.
TRANSMITEK has more than 100 high-pressure fuel pump references, which covering more than 1,000 vehicle applications.
