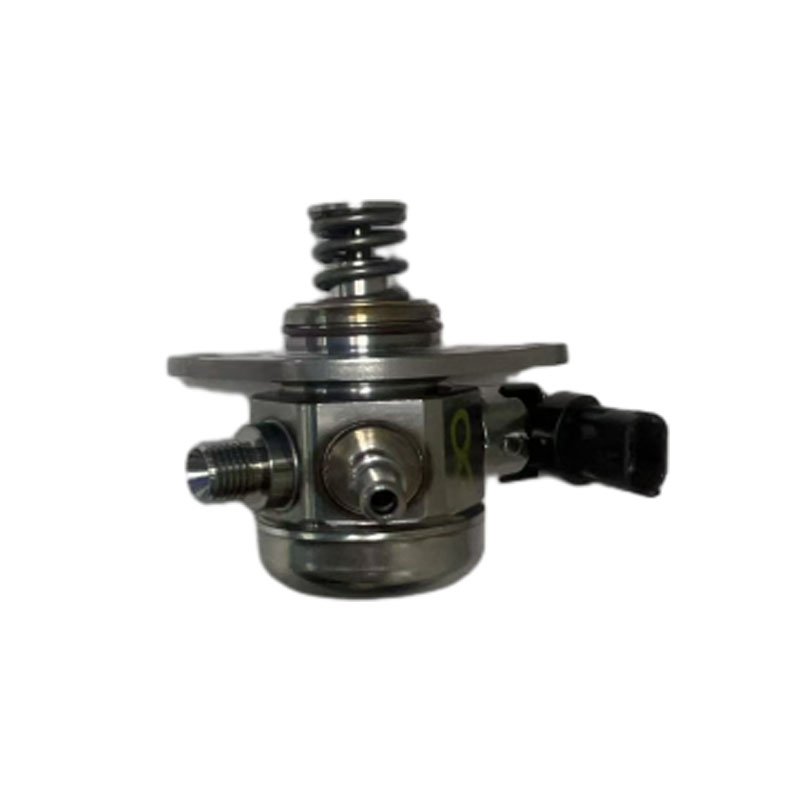

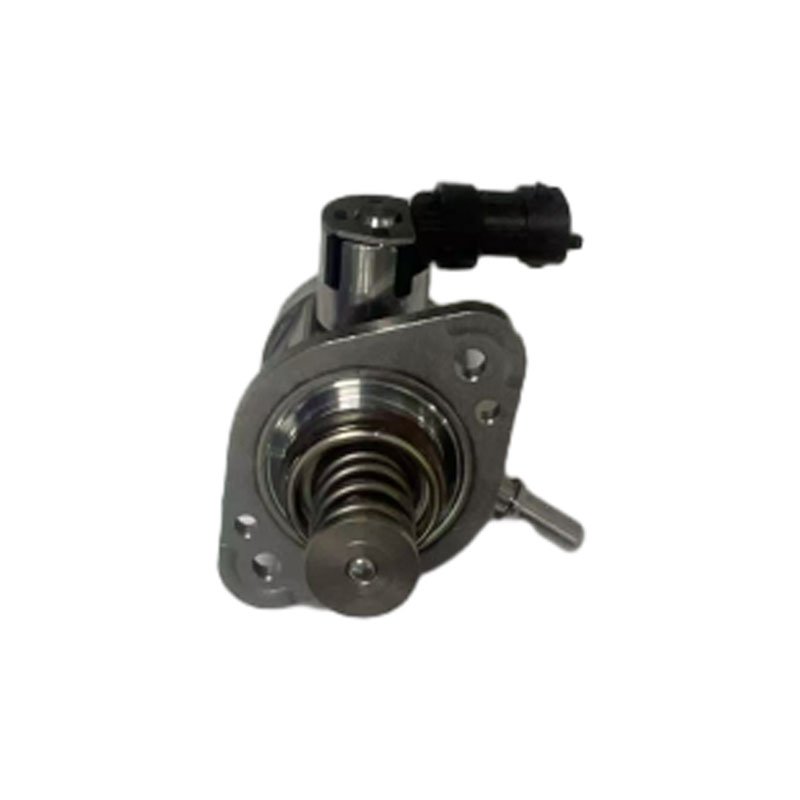

F01R00NB32 HPP220A GDI fuel pump for Chery Tiggo 8 Pro 2021
Comprehensive performance
| 40Bar/10s (ml/min)low speed flow | 150～170 |
| 100Bar/5s (ml/min)Medium speed flow | 1016～1206 |
| 200Bar/5s (ml/min)High speed flow | 1250～1450 |
| 200Bar/10s (ml/min)High speed variable flow | 300～650 |
| (Bar) Zero oil pressure |
15～30 |
| (Bar) safety valve pressure |
220～280 |
| (Bar) Boost capability |
30～50 |
| (Bar) Pressure holding capacity |
0～10 |
| (Mpa) High-pressure airtightness |
＜15 |
Description
TRANSMITEK High Pressure Fuel Pump has below advantages:
- STABLE PERFORMANCE
100% online sealing performance tests &
component performance tests are using
German inspection instruments. - LONG SERVICELIFE
Housing uses BQ245 steel.
DURABIITY AND MECHANICAL STABIITY. - HIGH STRENGTH AND PRECISION
The plunger and plunger sleeve are made of high thermal stability and high performance materials, and are processed using imported cutting-edge high-precision equipment. The roundness can reach below 0.0005mm and the cylindricity can reach below 0.001mm. - QUALITY ASSURANCE
100% online performance testing.
Endurance tests under 150℃ to-40℃
exceed 2,000 hours.
